What is already known on this topic

In adults an arterial circle of Zinn-Haller perfused by a single laminar paraoptic artery was demonstrated by four authors in the 1990’s [1-4].

What this study adds:

A Pixlr Al Powered Photocolor Program noninvasive procedure and a fundus photograph gives one the ability to detect indirectly in older adults with normal visual field an intraocular optic nerve

(IOON) perfused by a single laminar and prelaminar paraoptic artery.

1. Fetal Hypoxic levels and the fetal hypoxic crisis

The fetal hypoxic level is measured indirectly by subtracting the measurable fetal SpO2 level from 100%. In general, the Sp02 levels remains low in the 1st and 3rd trimester of pregnancy (Figure #1) [5,6]. However, beginning in the 2nd trimester there is a spike in the Sp02 level from a low of 20% to 60% followed by lower SpO2 levels in the third trimester until shortly before birth.

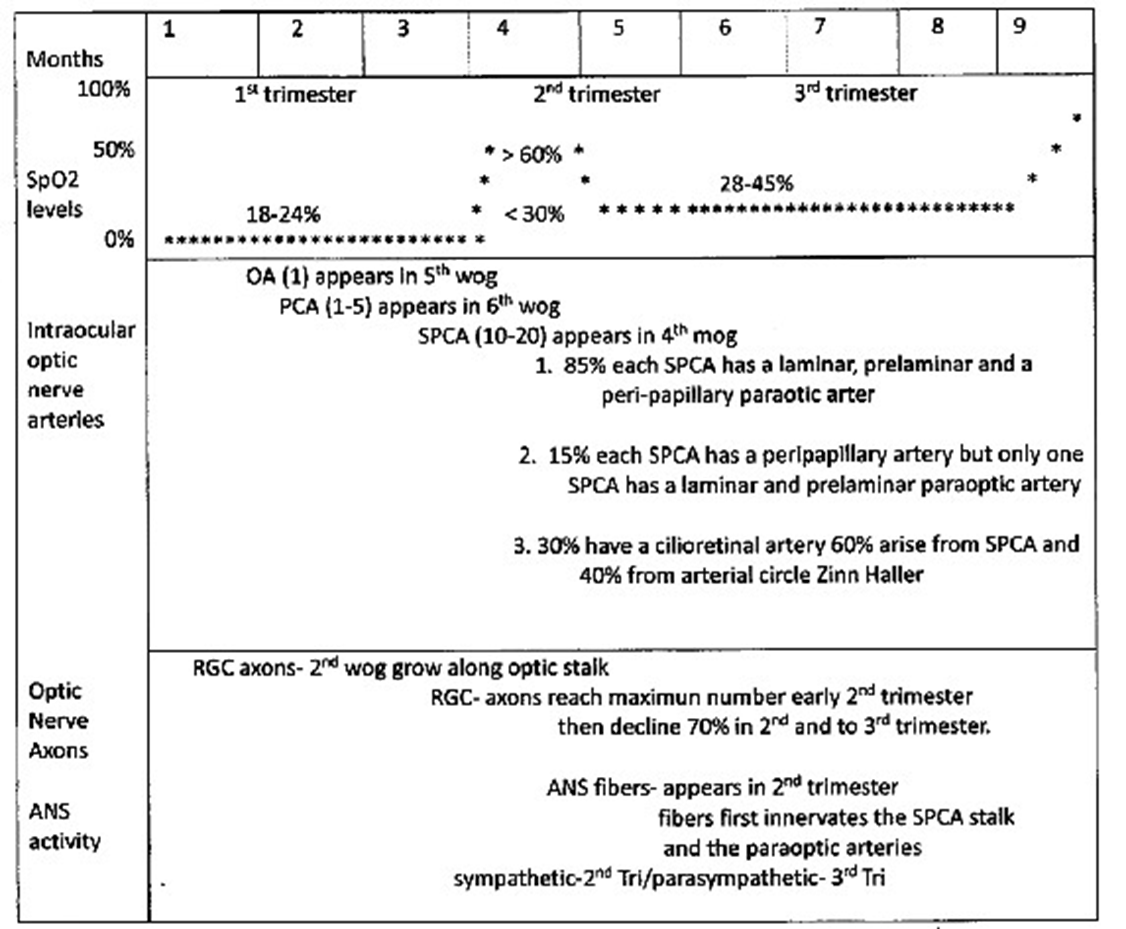

Figure 1: Time Line Fetal Intraocular Optic Nerve Development; SPCA-Short Posterior Ciliary Artery; RGC- Retinal Ganglion Cell; OA- Ophthalmic Artery; ANS- Autonomic Nervous System; PCA- Posterior Ciliary Artery; SpO2- Oxygen Saturation Level.

2. Fetal and adult choroidal blood perfusion

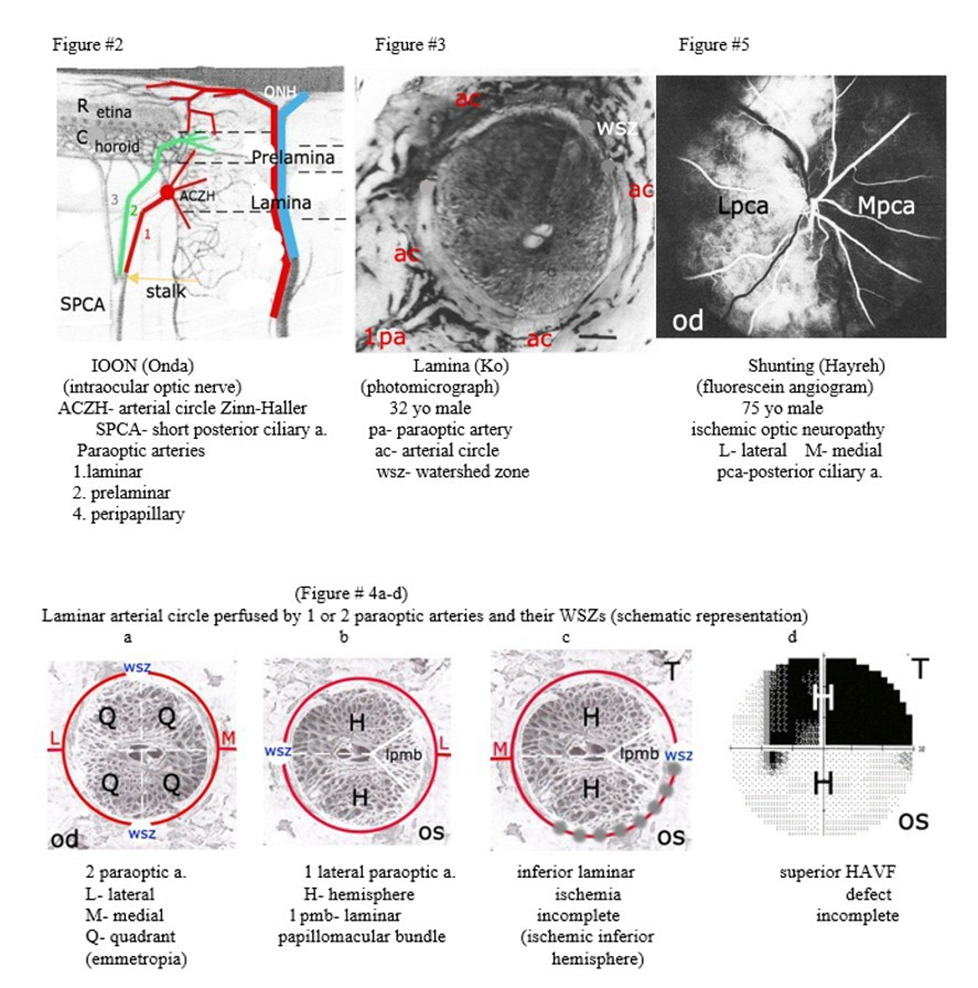

The ophthalmic artery (OA) appears in the 5th week of gestation (wog) [7] and branches into 1 to 5 posterior ciliary arteries (PCAs) in the 6th wog [8]. The multiple PCAs branch into 10 to 20 short posterior ciliary arteries (SPCAs) in the 4th month of gestation (mog) [9] that connect to the developing choriocapillaris. Two of the SPCAs, the medial and lateral, form three paraoptic arteries. A laminar paraoptic artery perfuses the arterial circle of Zinn-Haller and posterior prelamina, a prelaminar paraoptic artery perfuses the remainder of the prelamina and a peripapillary paraoptic artery perfuses the peripapillary choriocapillaris (Figure #2) [10]. In adults a single paraoptic artery perfusing the laminar arterial circle was demonstrated by 4 authors in the 1990’s. Two authors [1,2] used corrosion casting technique in human cadaver eyes, one [3] used indocyanine green in patients with pathologic myopia and a fourth [4] performed histopathological examination of the arterial circle of Zinn-Haller (Figure #3).

3. Fetal Neuronal Development

In the 2nd wog retinal ganglion cell (RGC) axons grow in parallel along the optic stalk towards the brain representing a relative retinal topography [11]. Macular nerve fiber axons occur temporally in the optic nerve head rim, the prelamina and the lamina [12]. The number of RGC axons reach their apogee early in the 2nd trimester and then decrease (70%) in number [13]. Also, in this second trimester sympathetic nerve fibers innervate the PCA’s, the medial and lateral SPCA (Figure #4) along with the paraoptic arteries [14]. Sympathetic nerve activity becomes prominent in the 2nd trimester and parasympathetic activity in the 3rd trimester of pregnancy [15].

4. Watershed Zones and the Arterial Circle of ZinnHaller

A watershed zone (WSZ) is the common capillary bed perfused by two different end arteries and is the weak link in tissue perfusion [16]. A simple laminar WSZ of the arterial circle has no anastomoses and is at greater risk for ischemia than a prelaminar complex WSZ with dense anastomoses [17]. Two laminar paraoptic arteries perfusing the arterial circle divide laminar perfusion into 4 quadrants with two simple vertical WSZs (Figure #4a). In a minority of humans, a single laminar paraoptic artery perfuses the arterial circle and divides laminar perfusion into a superior and an inferior hemisphere. Its one simple WSZ is located 180 degrees opposite from the perfusing paraoptic artery. This places the WSZ outside the intraocular optic nerve in the region of the peripapillary ring and peripapillary choroidal vasculature [18,19] (Figure #4b, c).

5. Clinical Picture of patients demonstrating a HAVF defect

Clinically, adult laminar ischemia presents with a superior or an inferior HAVF defect. In general, these eyes maintain good visual acuity and demonstrate minimal optic disc changes unless associated with pathologic myopia or retinal PMB visual field defects. If laminar ischemia worsens a double HAVF defect results that progresses to ischemic optic neuropathy and optic atrophy [20].

In the NAAION Decompression Trial Study [21] the incidence of a HAVF defect was 35% in the randomized group and 10% in the non-randomized group of the total visual fields performed in each group [22]. Hayreh found inferior HAVF defect in 34.9% of patients with ischemic optic neuropathy [23]. Since NAAION is a unilateral event, the fellow eye can be used as a control [24].

Using the Pixlr Al Program and manipulating the Hue and Vibrance settings one can obtain in older adults a desaturated fundus photograph showing the peripapillary choroidal vascular pattern around the ONH and posterior pole of the eye. The loss of this peripapillary vascular pattern adjacent to the ONH is best demonstrated in pathologic myopia (Case#1), next are adult eyes with a normal axial length (Case#2) and poorest results in acute ischemic optic neuropathy (Case #4). The adult patients are divided into 3 group: Group A. a single HAVF defect in one eye, Group B. a double HAVF defect in one eye and Group C. a visual field defect involving 3 or more quadrants in one eye. The intraocular pressure was within normal limits in all 6 cases.

Group A:

Case #1:  A 57-year-old female demonstrated a superior HAVF in her right eye (Case#1e). She also demonstrated a minor inferior visual field defect in her left eye. Her vision was 20/20 in the right eye and 20/50 in the left eye secondary to recurrent heretic keratitis and laser treated myopic retinal macular edema. She had pathological myopia greater in her right eye (axial length 33.7mm) and bilateral pseudophakia with a flattened oblong ONH in both eyes. Her right lateral peripapillary choroidal pattern is absent (Case#1b).

Case #2: A 61-year-old female demonstrated a superior HAVF defect in her left eye (Case#2f). Initially, the HAVF defect involved her left papillomacular bundle (PMB). She had a superior nasal step visual field defect in her right eye (Case#2e). Her vision was 20/20 with moderate myopia in each eye and thinning of the inferior temporal left OH rim. Her past history included 2 myocardial infarction and 9 coronary artery stents insertion. Her left peripapillary choroidal vascular pattern artery is absent (Case# 2d).

Case #3: A 67-year-old female underwent an angioplasty resulting in multiple emboli involving her left eye. Seven years after the angioplasty she demonstrated a superior HAVF defect with involvement of the superior and inferior PMB (Case# 3f). The visual field in her right eye was within normal limits (Case#3e). Her visual acuity in the left eve varied from 20/80 to 20/200 seeing only the bottom of numbers on the visual acuity chart. She had a cataract greater in the left eye than the right eye. Her left medial peripapillary choroidal vascular pattern is absent (Case# 3d).

Group B:

Case# 4: An 84-year-old female presented with an inferior HAVF defect (Case#4f) in her left eye upon awakening. One month later it progressed to a superior HAVF defect (Case#4g). Her visual acuity was initially 20/20 in each eye. She had a hyperemic swollen left ONH and pale retinal edema adjacent to the superior ONH margin. A fluorescein angiogram performed 6 days later demonstrated a patent superior and inferior retinal arterioles with staining of the ONH. She was on no medications and otherwise healthy. Three months later the vision in her left eye was 20/300 with marked optic atrophy. Her left lateral peripapillary vascular pattern is absent (Case#4d).

Case #5: An 84-year-old male presented with a superior HAVF (Case #5e) defect that progressed 1 month later to and inferior HAVF defect (Case#5f). Eye exam demonstrated initially a visual acuity of 20/20 in each eye with subtle ischemic swelling of the inferior rim of the right ONH (Case#5a).His initial blood pressure was 125/85, his c-reactive protein < 0.28, erythrocyte sedimentation rate 2mm/ hr and a blood sugar of 345 mg/dl. He had a history of atrial fibrillation, myocardial infarction with cardiac arrest in 2014 and diabetes mellitus type 2 since 2017. CTA of his neck with contrast showed some atherosclerosis of internal carotid arteries with only 20% occlusion on the right side. His right medial peripapillary choroidal vascular pattern is absent (Case#5b).

Group C:

Case #6. A 76-year-old female presented with a visual field defect involving all 4 quadrants and the superior and inferior PMB of her right eye (Case#6e). Two days earlier she developed pain in her right eye during insertion of a carotid stent for a 95% occluded right carotid artery. Her visual acuity in this eye was 20/40. Five years later there was an improvement in her visual field defects, particularly her PMB (Case#6f). Her visual acuity in her right eye improved from 20/50 to 20/25 after cataract extraction. Her visual acuity in her left eye remains 20/20 and her visual field was within normal limits. She had a past history of elevated cholesterol (380-412mg) and an aortic valve repair. In both eyes there is no loss of the peripapillary choroidal vascular pattern (Case#6b, d).
